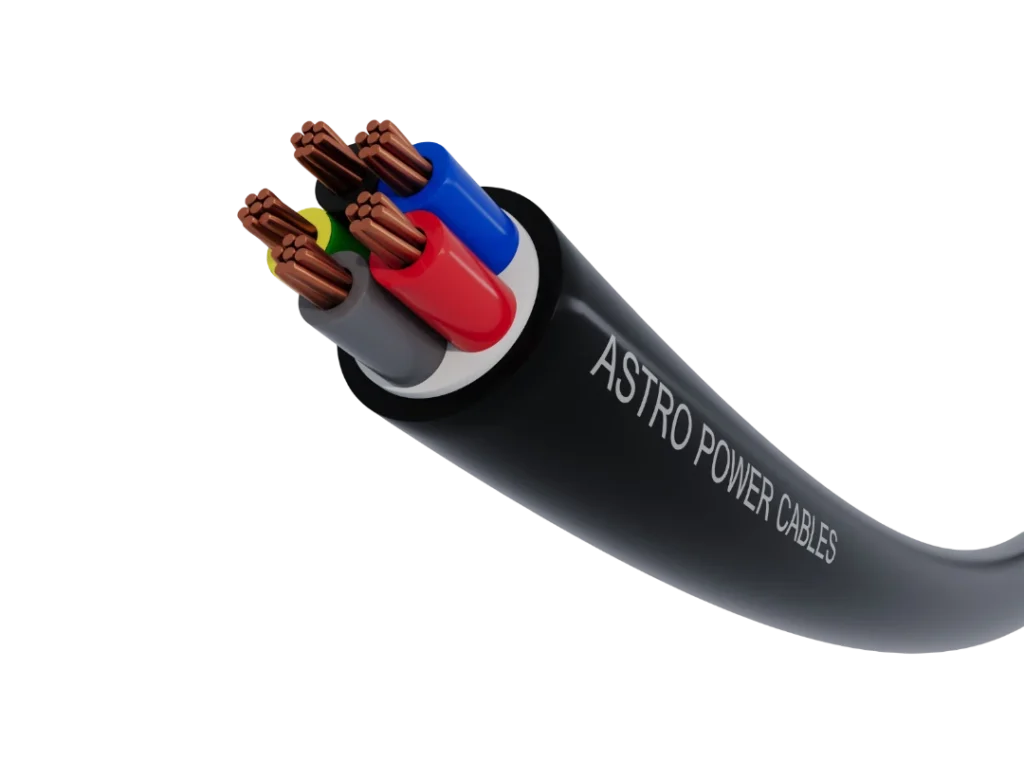

N2XY
Multi Core Cables with cross-linked polyethylene insulated and PVC Sheathed
APPLICATION
Designed for low-voltage systems in industrial applications, these cables with enhance durability for underground use and with extra mechanical protection. Mount them easily on trays, in conduits, or on walls.
Construction
| Conductor | Round Stranded Annealed Copper as per class 2 of IEC 60228 |
|---|---|
| Insulation | XLPE applied around the conductor for 90c |
| Colors | Color: can be supplied on request |
| Sheath | PVC outer sheath 90c |
| Packing | Cables with C.S.A from 1.5 to 6 sqmm to be supplied in coil of 100 meters Cables with C.S.A from 10 to 35 sqmm to be supplied in wooden drum of 1000 meters or 2000 meters |
Ratings
| Temperature | - 25 C to + 90 C |
|---|---|
| Voltage | 600/1000 V |
| Applicable Standards | IEC 60228, IEC 60502-1 |
| Flame Retardant | IEC 60332-1 |
Conductor Flexibility Class 2 IEC 60228
Rated Voltage 600/1000 V
Minimum Bending Radius (mm) 10 x Overall Diameter
Max conductor Temp in service 90 C
Max. short-circuit temperature: 250°C Minimum installation and handling temperature: 5ºC
Flame retardant IEC 60332-1-2
