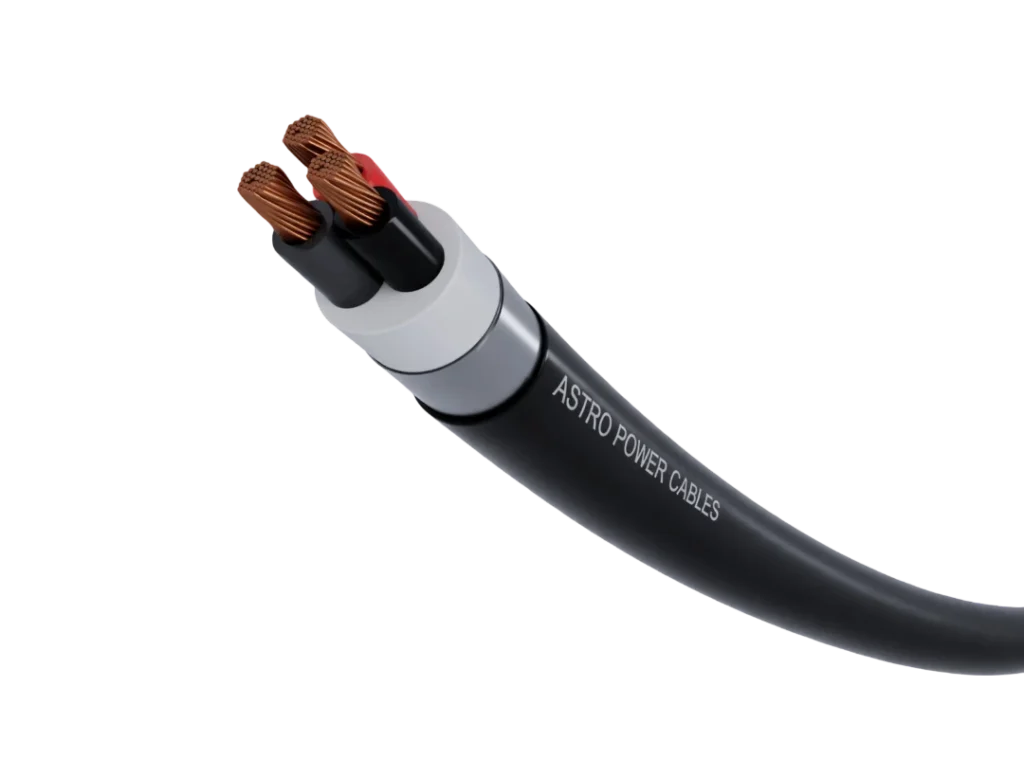

NYBY
APPLICATION
Power and control cable for fixed installation, used indoors, outdoors, underground, and in water ,where the cable may be subject to mechanical crush and impact.
Construction
| Conductor | Round Stranded Annealed Copper as per class 2 of IEC 60228 |
|---|---|
| Insulation | PVC applied around the conductor for 70c |
| Colors | Color: can be supplied on request |
| Armor | steel tape armor |
| Sheath | PVC outer sheath 70c |
| Packing | Cables to be supplied in wooden drum of 1000 meters or 2000 meters |
Ratings
| Temperature | - 25 to + 70 C |
|---|---|
| Voltage | 600/1000 V |
| Applicable Standards | IEC 60228, IEC 60502-1 |
Conductor Flexibility Class 2 BS EN 60228
Rated Voltage 600/1000 V
Minimum Bending Radius (mm) 12 x Overall Diameter
Max conductor Temp in service 70 C
Max. short-circuit temperature: 160°C Minimum installation and handling temperature: 5ºC.
Flame retardant IEC 60332-1
